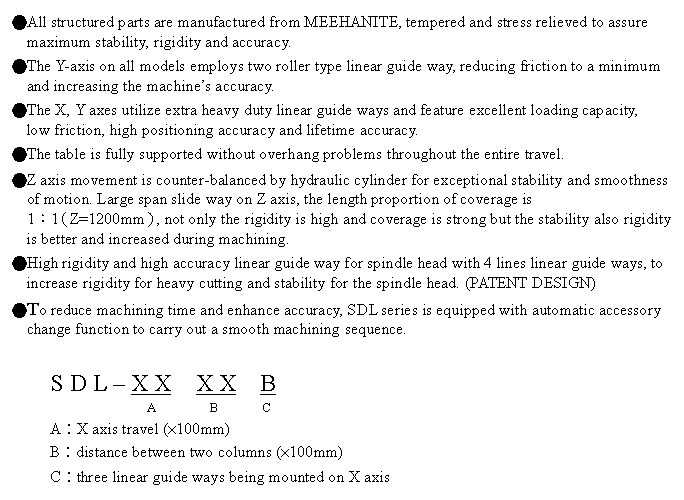

SDL series
X/Y axis linear guide ways
Z axis with four line linear guide ways-patent design
MODEL |
UNIT |
SDL-3216 |
SDL-4216 |
|
TABLE |
||||
Overall Size |
mm |
3000×1400 |
4000×1400 |
|
Max. Loading |
ton |
9 |
10 |
|
TRAVEL |
||||
X Axis |
mm |
3200 |
4200 |
|
Y Axis |
mm |
1400 |
||
Z Axis |
mm |
1200 / (opt. 900 or 1400) |
||
DISTANCE |
||||
Between Two Columns |
mm |
1600 |
||
Spindle Nose to Table Top |
mm |
270~1170 (Z= 900) / 270~1470 (Z=1200) / 270~1670 (Z=1400) |
||
SPINDLE |
||||
Speed |
rpm |
6000 (Driven by Gear Box) |
||
Motor-cont / 30 min |
kW |
FANUC 15/18.5 (opt. 22/26 or 30/37) |
||
Taper |
|
BT/DIN/CAT-50 (opt. BT/DIN/CAT-40) |
||
ATC |
||||
No. of ATC |
tools |
24 (opt. 32/40/60) |
||
Max. Tool Length |
mm |
350 |
||
Max. Tool Weight |
kg |
15 |
||
MISCELLANCOUS |
||||
Power Required |
kVA |
50 |
||
CNC Controller |
|
FANUC 0i-MF (opt. MITSUBISHI / SIEMENS / HEIDENHAIN) |
||
●Standard Accessories |
●Optional Accessories |
|||
Spindle Air Blast System Spindle Oil Cooler Automatic Lubrication System M. P. G. Heat Exchanger in Cabinet Automatic Power off Working Lamp & Alarm Lamp Screw Auger、Chain type Chip Conveyor、Cart Machine & Controller Manual Levelling Bolts & Pads Tool Box for Machine Adjustment RS-232C / RJ-45 Terminal Interface AICC II (200 block / 30m) DATA SERVER + 2G CF Card Splash Guard |
Automatic Attachment Changer System (AAC) Spindle Motor Upgrade Auxiliary Table 4th Axis Rotary Table Air Conditioner in Cabinet Milling Head ATC with 32/40/60 Tools Magazine Coolant Through Spindle (C.T.S.) Linear Scale for Three Axes Auto. Tool Setter Renishaw (TS-27R) Auto. Workpiece Measurement (OMP-60 / RMP-60) Cutting Coolant Mist Device Full Splash Guard with Top Cover Heat Compensation CNC Controller (MITSUBISHI / SIEMENS / HEIDENHAIN) |
|||
Specifications are subject to change without notice |
||||
