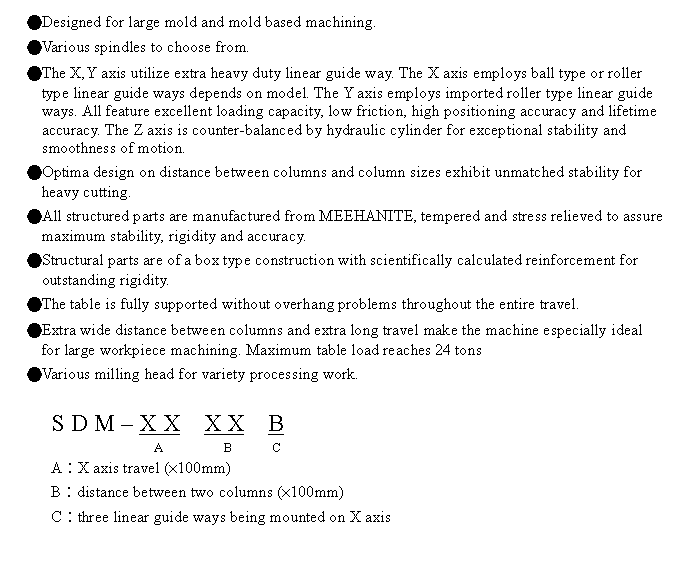

SDM series
X/Y axis linear guide way,Z axis box way
MODEL |
UNIT |
SDM-4232 |
SDM-5232 |
SDM-6232 |
SDM-7232 |
||
TABLE |
|||||||
Overall Size |
mm |
4000×2900 |
5000×2900 |
6000×2900 |
6000×2900 |
||
Max. Loading |
ton |
14 |
20 |
20 |
20 |
||
TRAVEL |
|||||||
X Axis |
mm |
4200 |
5200 |
6200 |
7200 |
||
Y Axis |
mm |
3700 |
|||||
Z Axis |
mm |
900 |
|||||
DISTANCE |
|||||||
Between Two Columns |
mm |
3200 |
|||||
Spindle Nose to Table Top |
mm |
270~1170 |
|||||
SPINDLE |
|||||||
Speed |
rpm |
4000 / 6000 (Driven by ZF Box) |
|||||
Motor-cont / 30 min |
kW |
FANUC 15/18.5 (opt. 22/26) |
|||||
Taper |
|
BT/DIN/CAT-50 (opt. BT/DIN/CAT-40) |
|||||
No. of ATC |
|||||||
Max. Tool Length |
mm |
350 |
|||||
Max. Tool Weight |
kg |
18 |
|||||
No. of ATC |
tools |
24 (opt. 32/40/60) |
|||||
MISCELLANCOUS |
|||||||
Power Required |
kVA |
50 |
|||||
CNC Controller |
|
FANUC 0i-MF (opt. MITSUBISHI / SIEMENS / HEIDENHAIN) |
|||||
●Standard Accessories |
●Optional Accessories |
||||||
Spindle Air Blast System Spindle Oil Cooler Automatic Lubrication System M. P. G. Heat Exchanger in Cabinet Automatic Power off Working Lamp & Alarm Lamp Screw Auger、Chain type Chip Conveyor、Cart Machine & Controller Manual Levelling Bolts & Pads Tool Box for Machine Adjustment RS-232C / RJ-45 Terminal Interface AICC II (200 block / 30m) DATA SERVER + 2G CF Card Splash Guard |
Spindle Speed 8000 / 10000 / 12000 rpm Spindle Motor Upgrade Auxiliary Table 4th Axis Rotary Table Air Conditioner in Cabinet Milling Head ATC with 32/40/60 Tools Magazine Coolant Through Spindle (C.T.S.) Linear Scale for Three Axes Auto. Tool Setter Renishaw (TS-27R) Auto. Workpiece Measurement (OMP-60 / RMP-60) Cutting Coolant Mist Device Full Splash Guard with Top Cover Heat Compensation CNC Controller (MITSUBISHI / SIEMENS / HEIDENHAIN) |
||||||
Specifications are subject to change without notice |
|||||||
