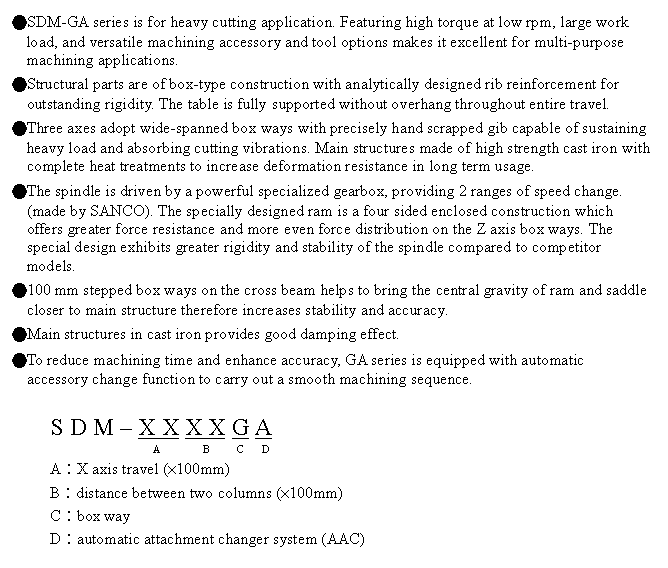

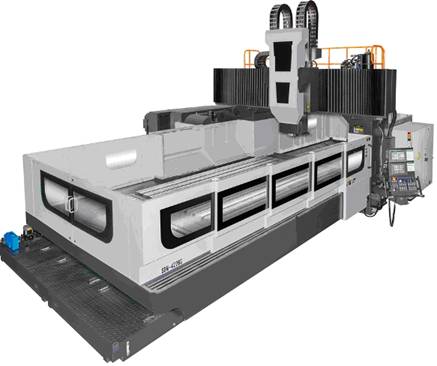

SDM-GA series
three axis box ways
MODEL |
UNIT |
SDM-3226GA |
SDM-4226GA |
SDM-5226GA |
||
TABLE |
||||||
Overall Size |
mm |
3000×2200 |
4000×2200 |
5000×2200 |
||
Max. Loading |
ton |
12 |
15 |
15 |
||
TRAVEL |
||||||
X Axis |
mm |
3200 |
4200 |
5200 |
||
Y Axis |
mm |
2700 |
||||
Z Axis |
mm |
800 / (opt. 1000) |
||||
DISTANCE |
||||||
Between Two Columns |
mm |
2600 |
||||
Spindle Nose to Table Top |
mm |
525~1325 (Z= 800) / 525~1525 (Z=1000) |
||||
SPINDLE |
||||||
Speed |
Main spindle |
rpm |
6000 (gear driven) |
|||
Extended head |
rpm |
MAX. 3500rpm,Extended length 300mm |
||||
90° milling head |
rpm |
MAX. 3500rpm,indexing 5° |
||||
Motor-cont / 30 min |
kW |
FANUC 15/18.5 (opt. 22/26) |
||||
Taper |
|
BT/DIN/CAT-50 (opt. BT/DIN/CAT-40) |
||||
ATC |
||||||
No. of ATC |
|
40 (opt. 60) vertical / horizontal ATC |
||||
Max. Tool Length |
mm |
400 |
||||
Max. Tool Weight |
kg |
20 |
||||
MISCELLANCOUS |
||||||
Power Required |
kVA |
50 |
||||
CNC Controller |
|
FANUC 0i-MF |
||||
●Standard Accessories |
●Optional Accessories |
|||||
Spindle Air Blast System Spindle Oil Cooler Automatic Lubrication System M. P. G. Heat Exchanger in Cabinet Automatic Power off Working Lamp & Alarm Lamp Screw Auger、Chain type Chip Conveyor、Cart Machine & Controller Manual Levelling Bolts & Pads Tool Box for Machine Adjustment RS-232C / RJ-45 Terminal Interface AICC II (200 block / 30m) DATA SERVER + 2G CF Card Splash Guard |
Spindle Motor Upgrade Auxiliary Table 4th Axis Rotary Table Air Conditioner in Cabinet Milling Head Vertical / Horizontal ATC (60 tools) Coolant Through Spindle (C.T.S.) Linear Scale for Three Axes Auto. Tool Setter Renishaw (TS-27R) Auto. Workpiece Measurement (OMP-60 / RMP-60) Cutting Coolant Mist Device Full Splash Guard with Top Cover Heat Compensation CNC Controller (MITSUBISHI / SIEMENS / HEIDENHAIN) |
|||||
Specifications are subject to change without notice |
||||||
